Vogl Perforated Plasterboard Ceiling

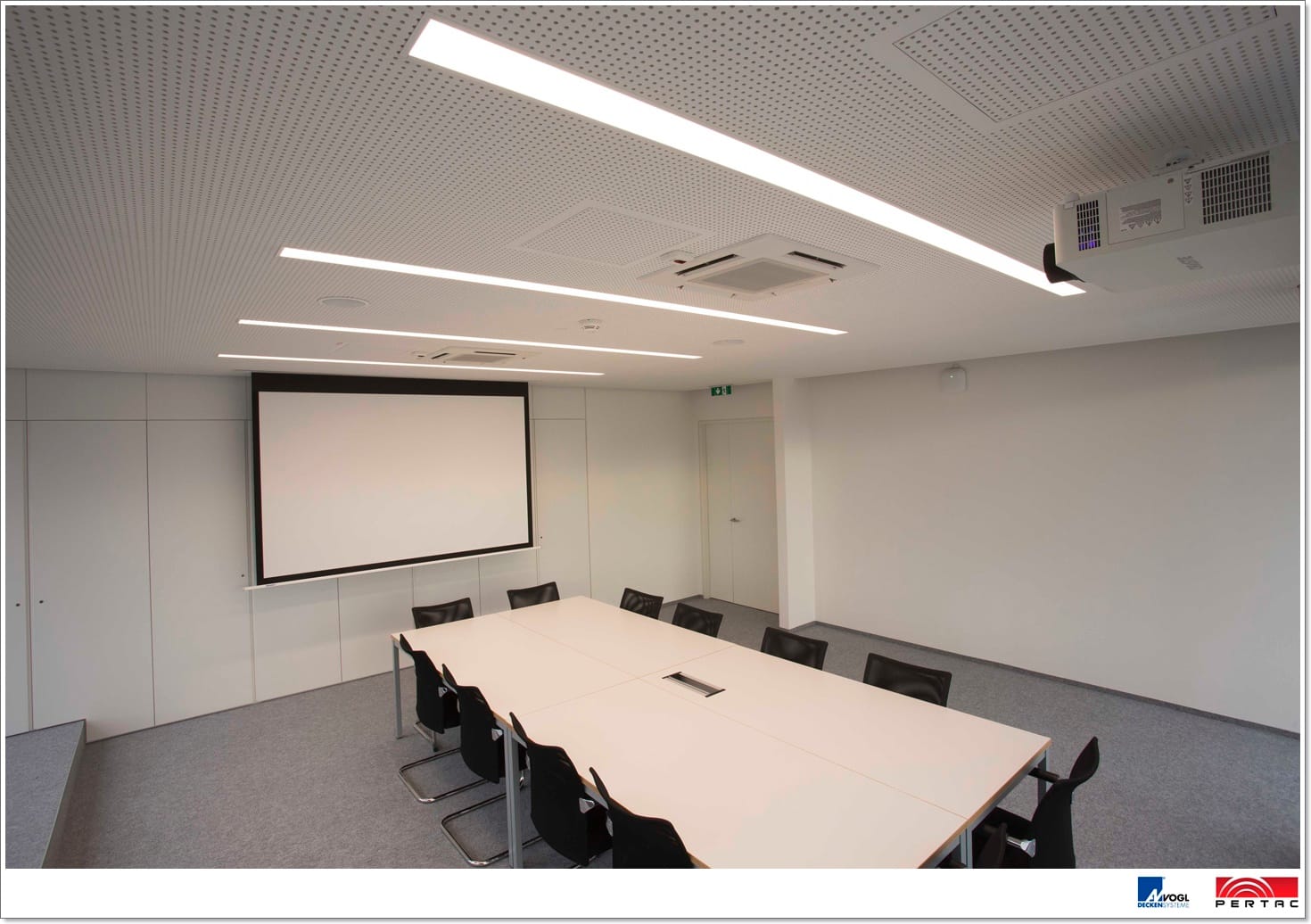

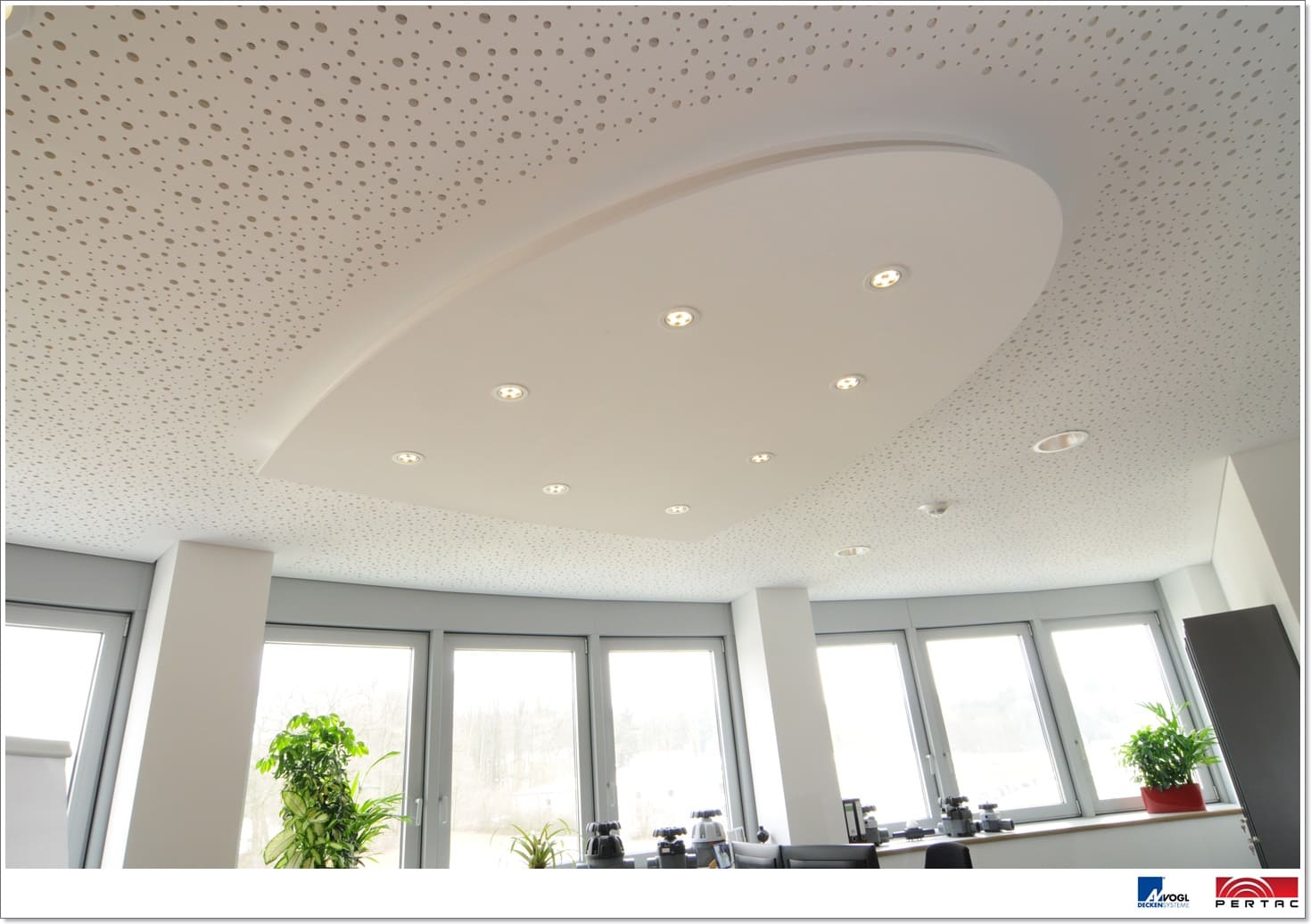

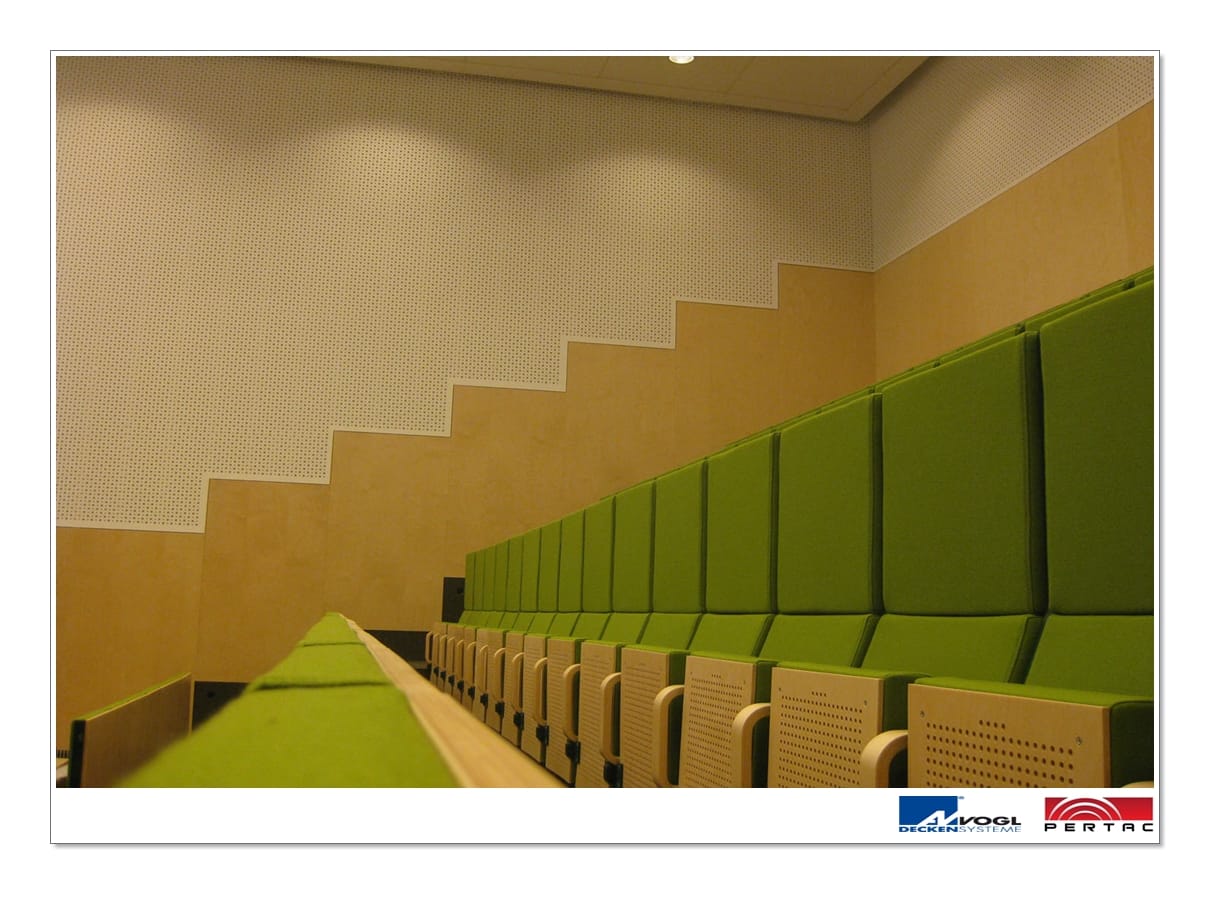

Vogl Decken Systeme, a perforated acoustic plasterboard from Germany, can achieve a seamless ceiling and wall with perfect border.  Whilst this enhances the aesthetical design of the space, it also provide the necessary reverberation control to the room.

Large halls, such as multi-purpose hall, banquet hall or function rooms, and highly trafficked areas such as schools, day care centres, conference rooms or public buildings which require high level of reverberation control would find the Vogl Decken Systeme appealing.  By means of high-precision panel production and newly defined accuracy, the specially developed compound seam joint system enables flawless finishing around the joints, quickly and easily.

TECHNICAL INFORMATION:
  • Model: 12/20/66R
    • Dimension: 2000 mm x 1200 mm (typical)
    • Thickness: 12.5 mm
    • Surface Weight: 8.00 kg/m2
    • Perforated Area: 19.6 %
    • Color: optional (can be painted)
    • Sound Absorption: NRC 0.80
    • Fire Behavior: Class 2 (non-combustible)
  • Model: 8/15/20R
    • Dimension: 2000 mm x 1200 mm (typical)
    • Thickness: 12.5 mm
    • Surface Weight: 9.10 kg/m2
    • Perforated Area: 9.5 %
    • Color: optional (can be painted)
    • Sound Absorption: NRC 0.60
    • Fire Behavior: Class 2 (non-combustible)
KEY FEATURES:
  • Aesthetically pleasing seamless joints
  • High degree of design liberty
  • Accessories to fully integrate lighting and ventilation systems
APPLICATIONS:
  • Banquet Halls
  • Hotel Lobbies
  • Corporate offices
  • Call Centres
  • Conference Rooms, etc
