PerMAP Metal Noise Barrier Panels

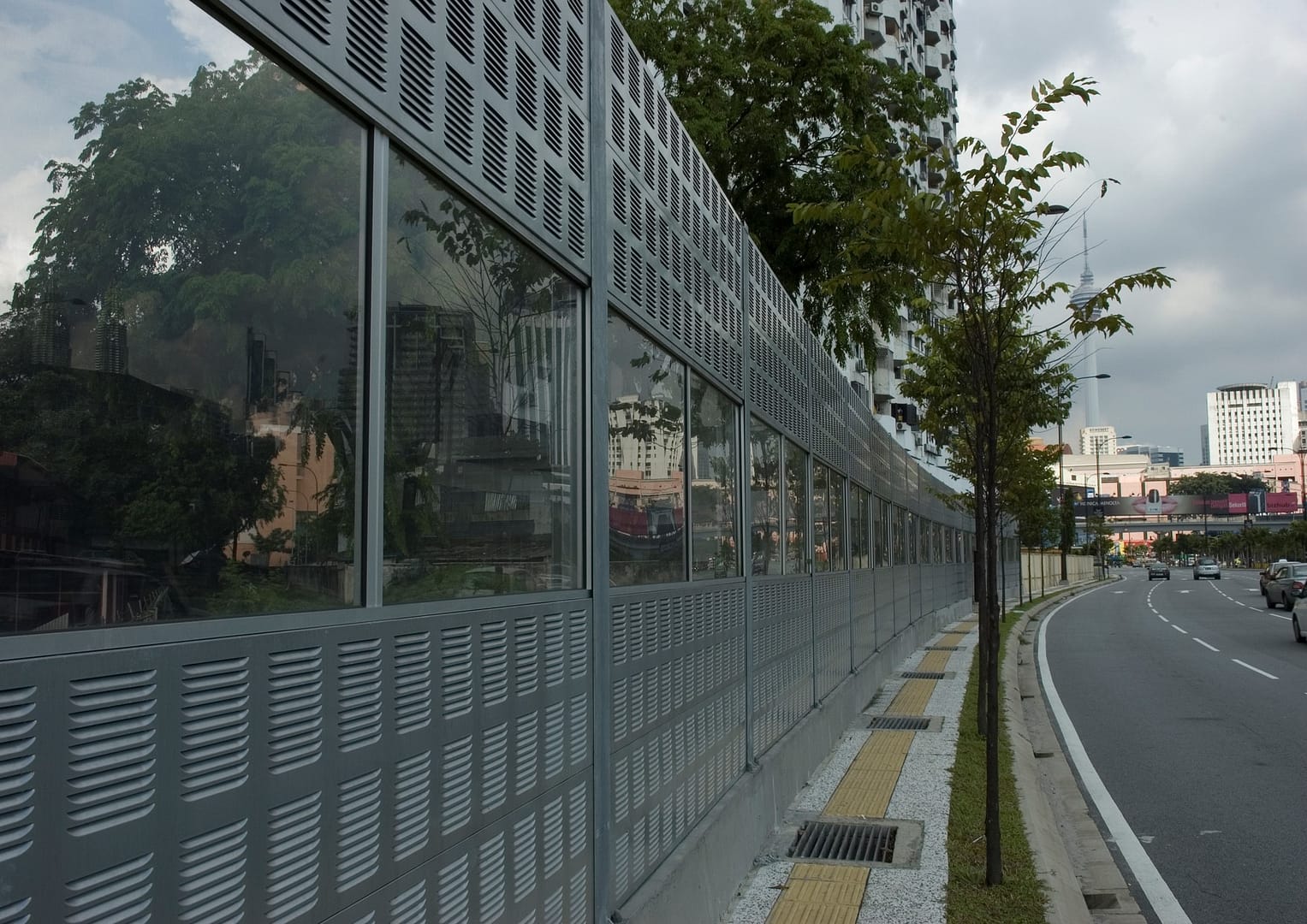

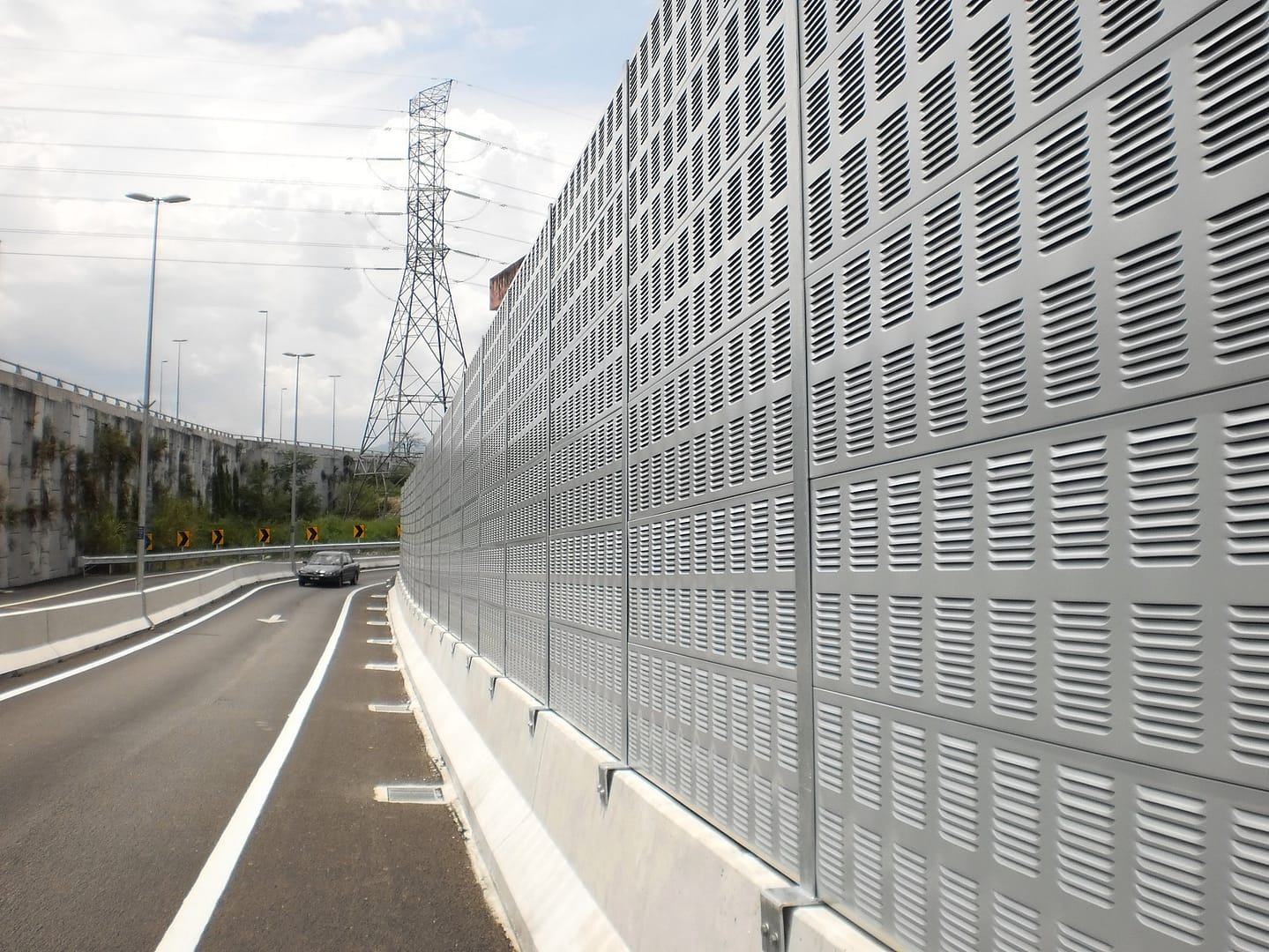

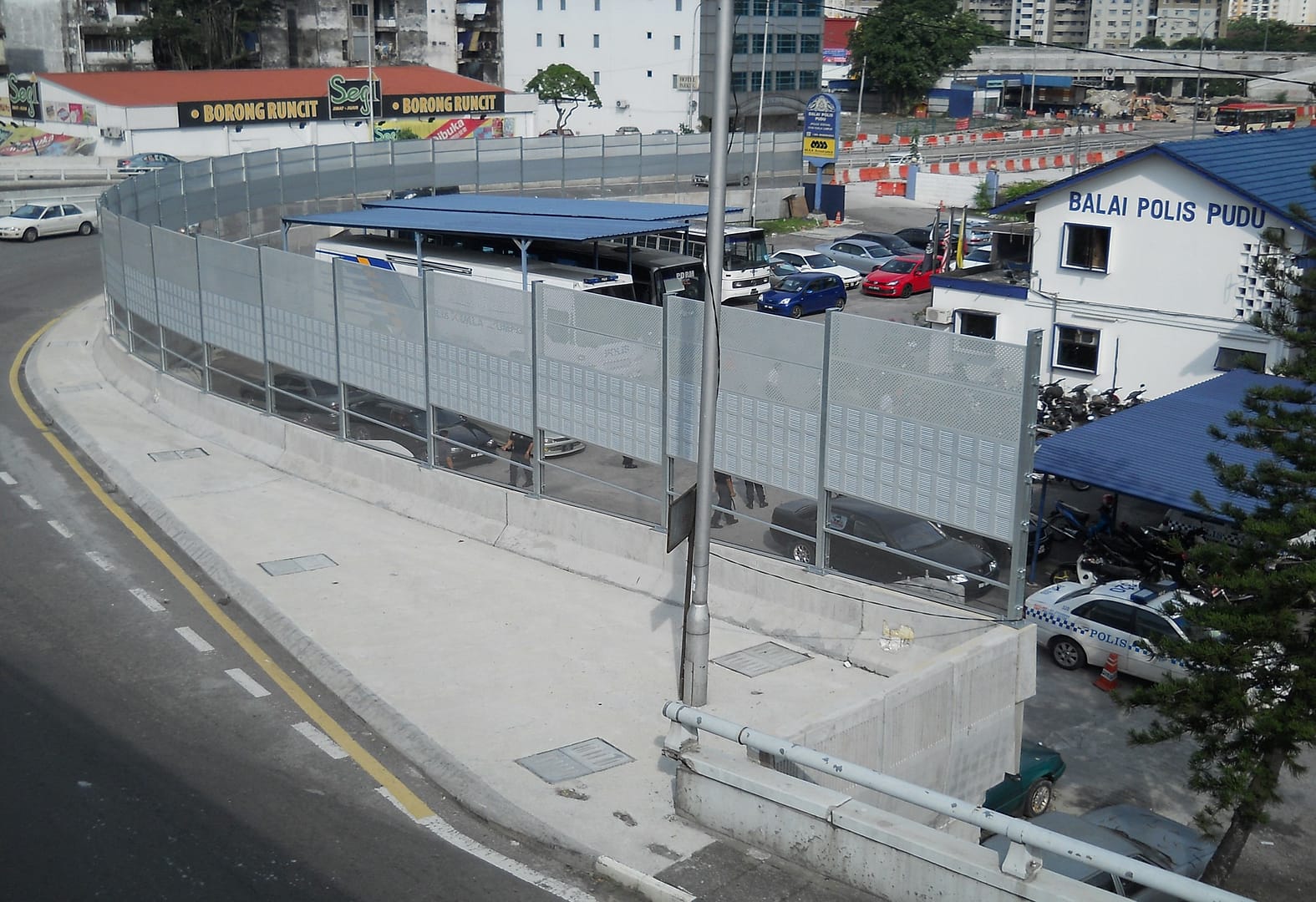

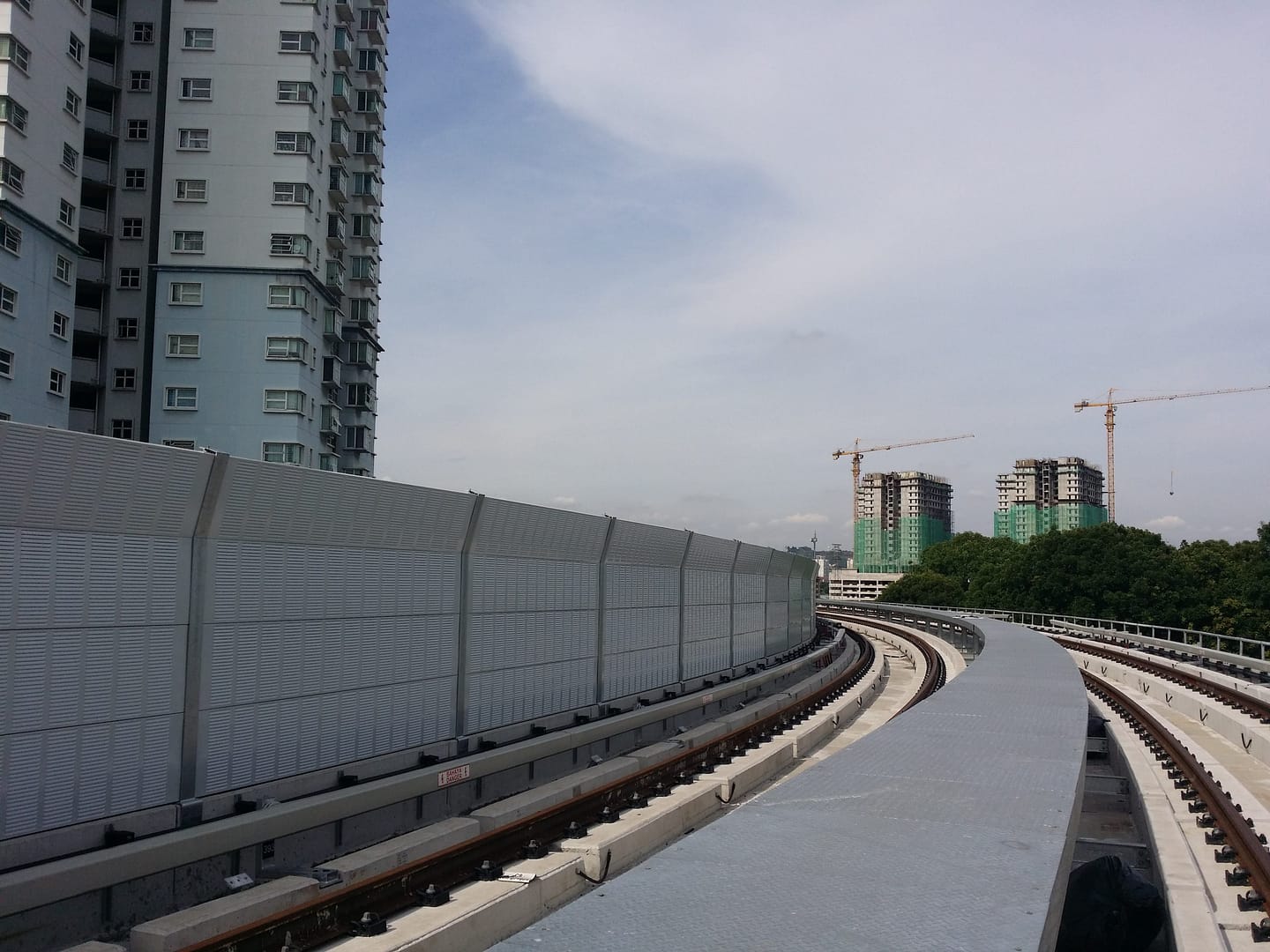

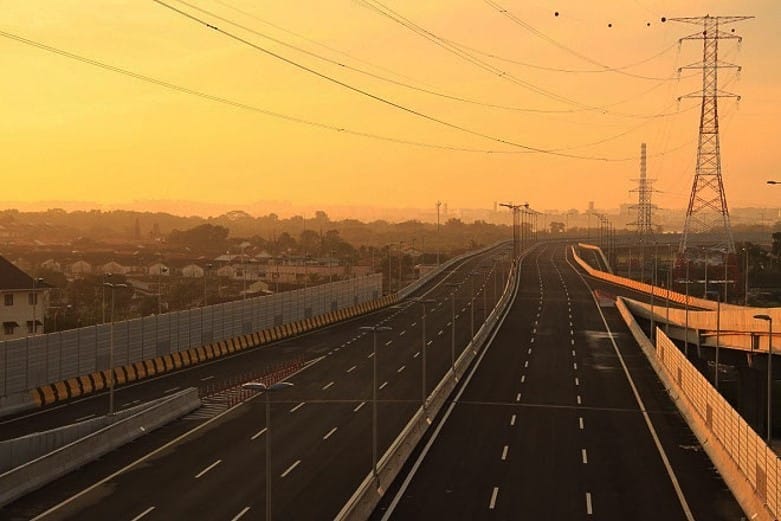

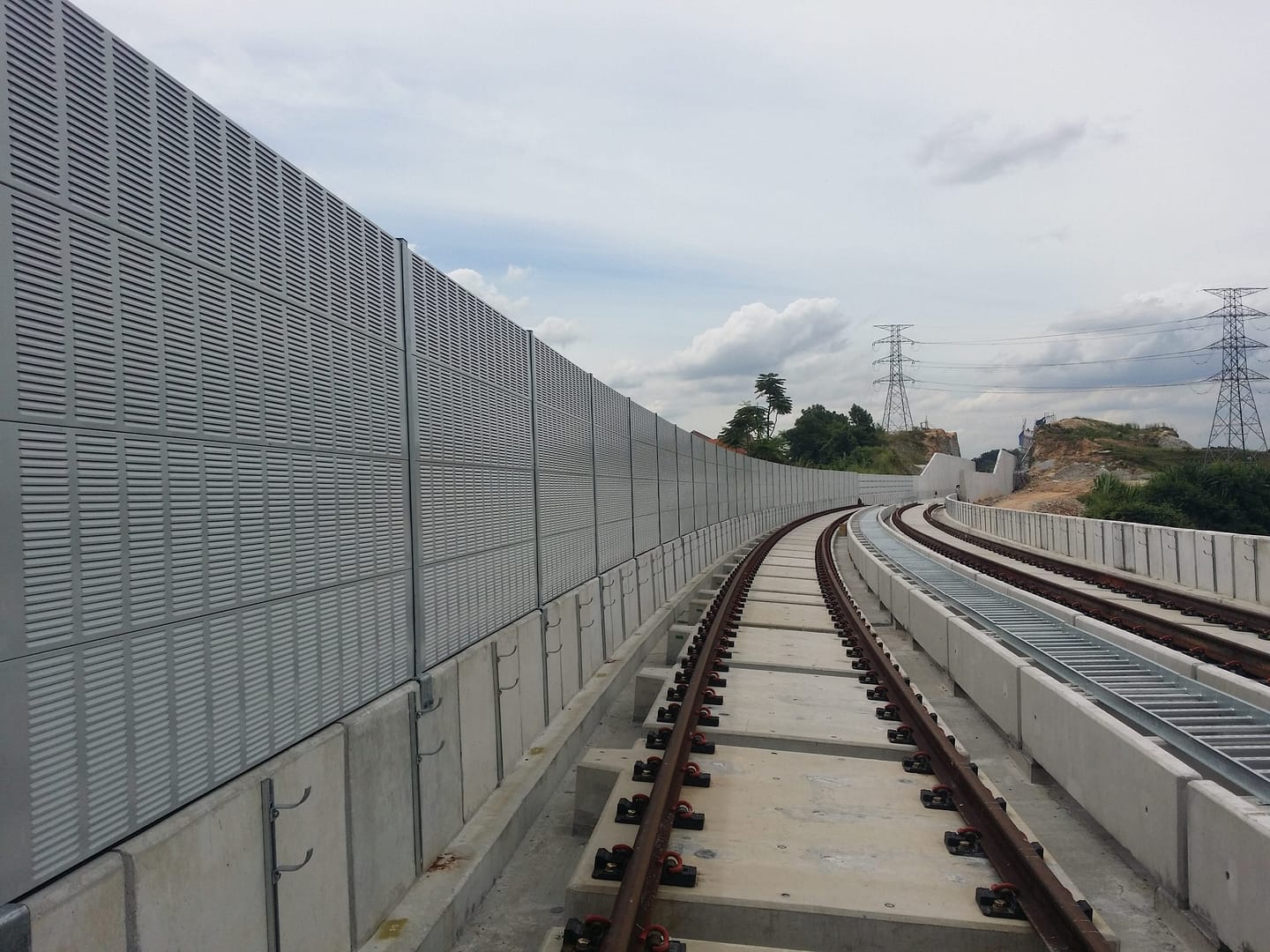

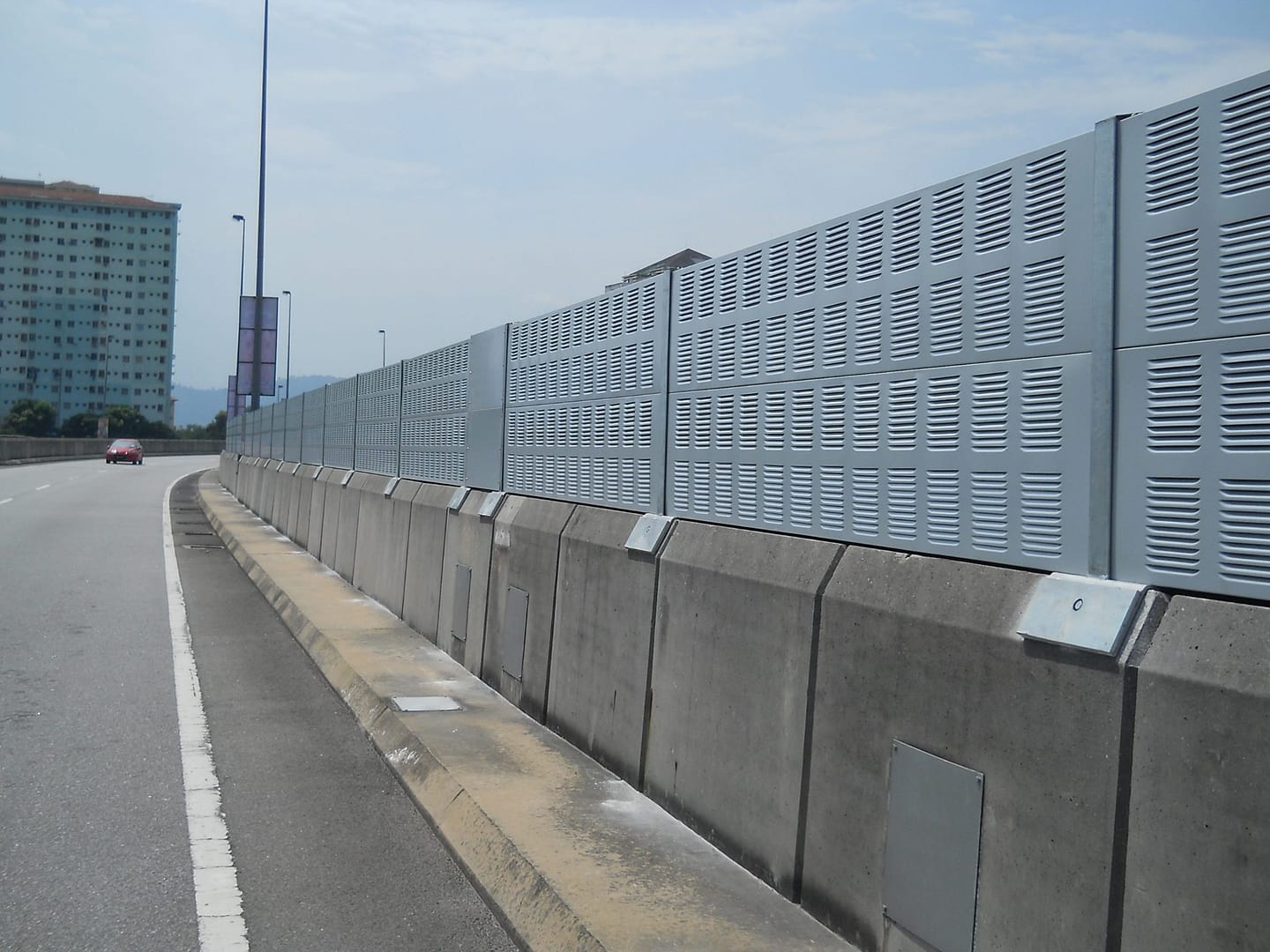

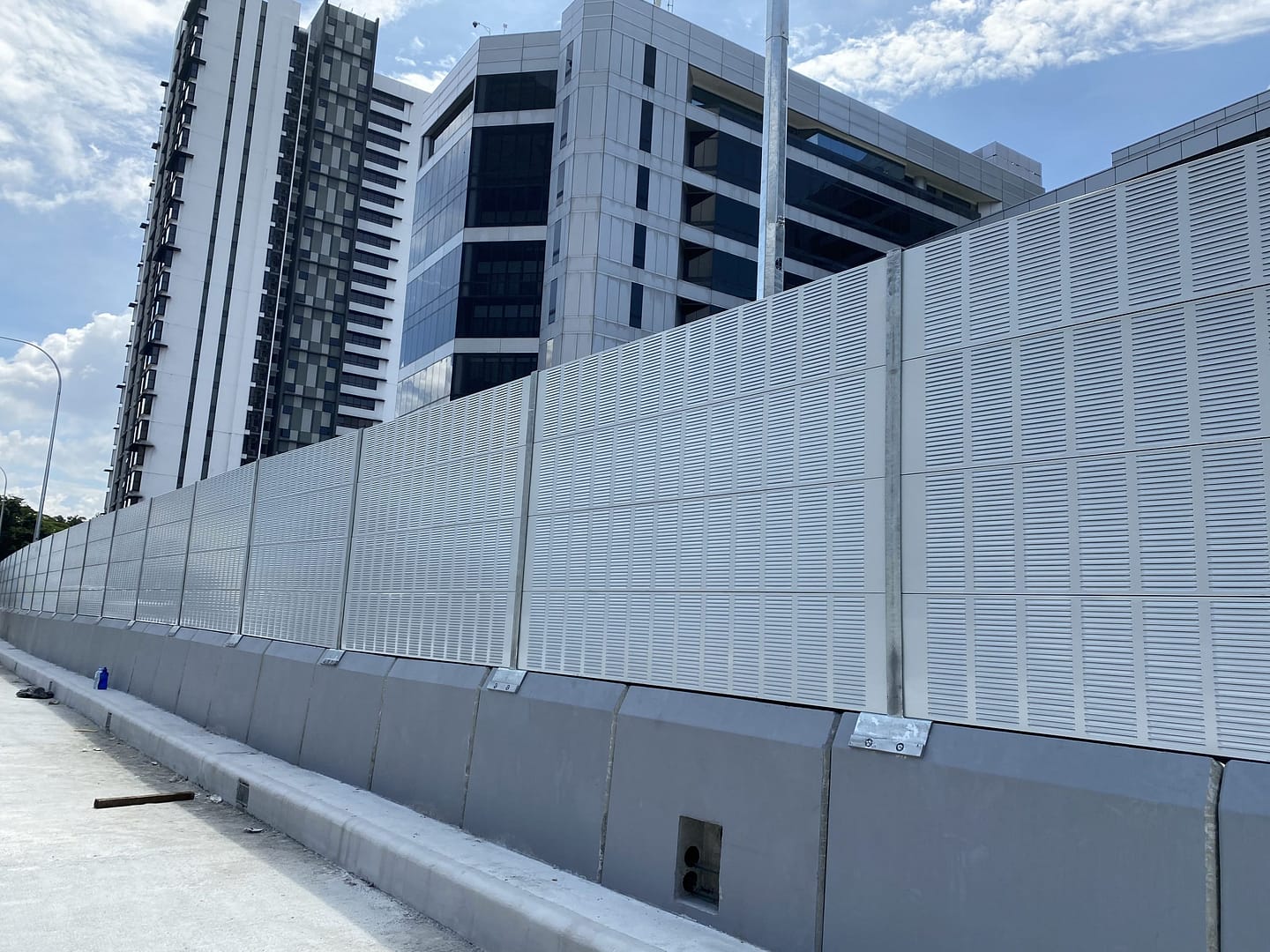

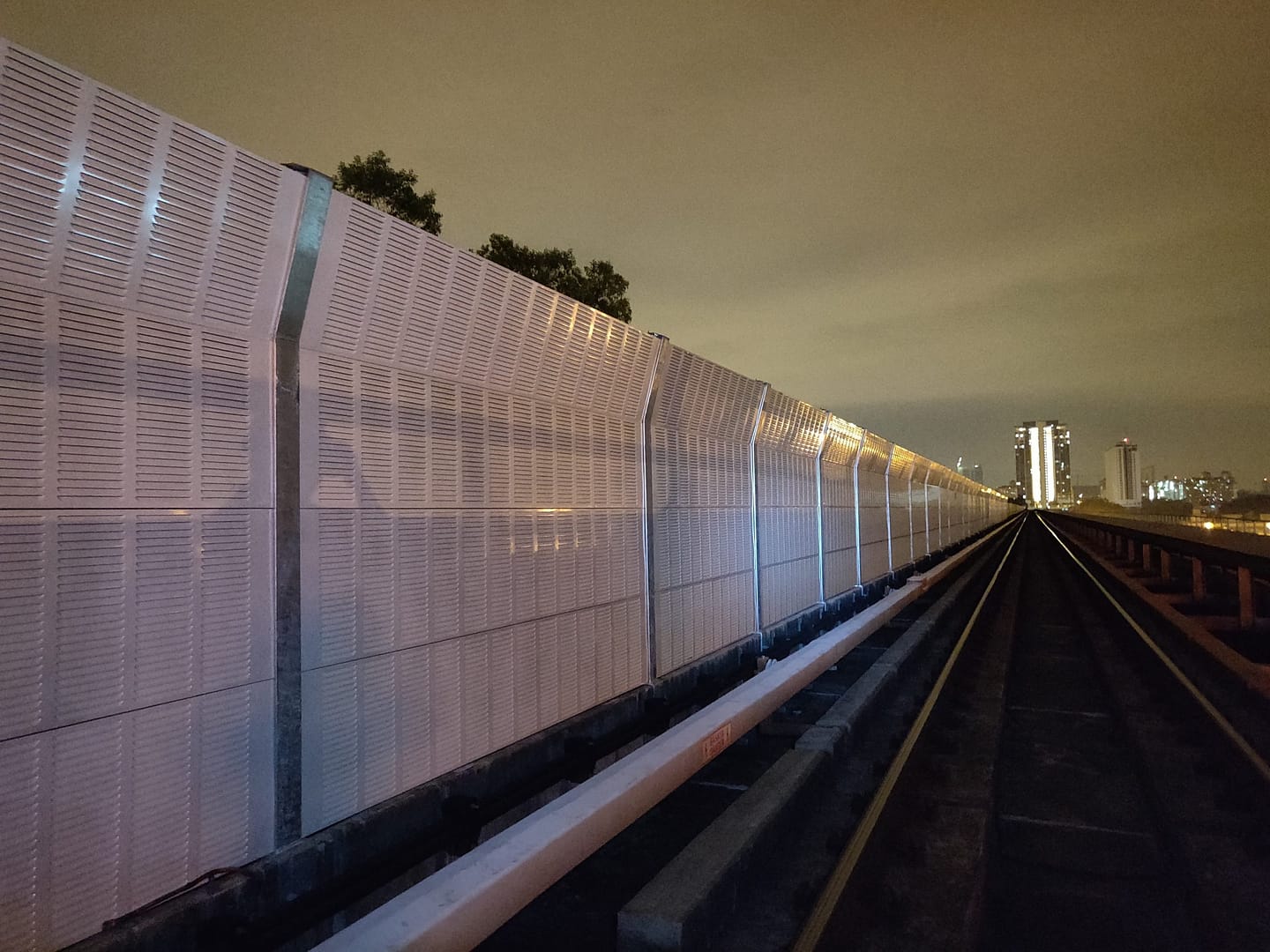

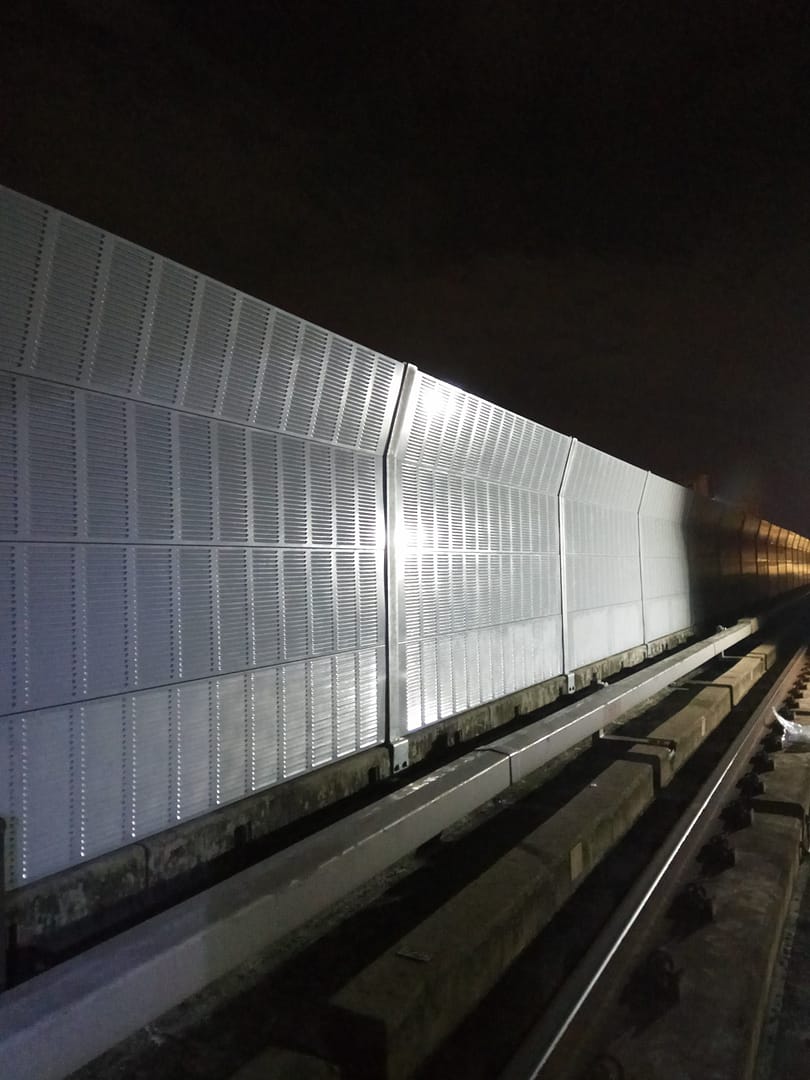

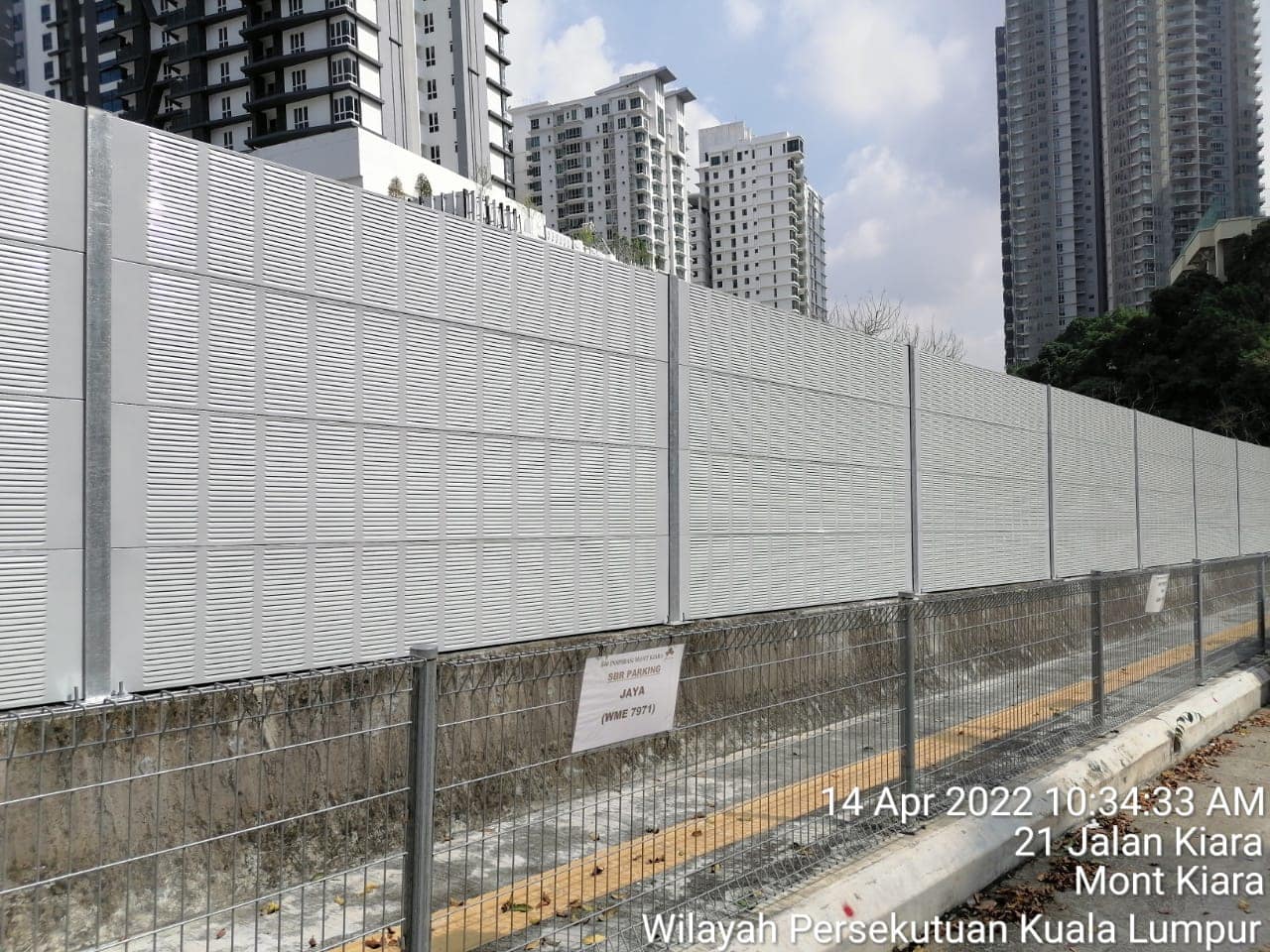

Designed as a highly absorptive noise barrier panels which is lightweight yet able to provide superior sound insulation, PerMAP panels have been used extensively as transportation noise barriers on elevated expressways, LRT/MRT rail links where loading on parapet walls is a major concern.  It is also ideal for use as noise barriers for compressors, cooling towers and other industrial noise control purpose.

The prefabricated modular post-and-panel system allows for speedy and trouble-free installation at site.  The noise barrier system is also complete with safety features such as anti-glare coating and anti-fall containment to prevent secondary accident upon vehicular impact.

TECHNICAL INFORMATION:
  • Height: 500 mm high panels
  • Length: 2000 mm, 2500mm and 3000 mm
  • Surface weight: >25kg/m2
  • Transmission Loss: STC 35
  • Sound Absorption: NRC 0.95
KEY FEATURES:
  • Effective sound absorption at dominant frequencies of vehicular traffic noise (250 Hz – 1000 Hz)
  • Superior sound transmission loss
  • Able to withstand gust wind speed up to 35m/s
  • Complete with anti-glare coating and anti-fall containment
  • Light-weight / Nominal loading on the parapet wall
  • Non-flammable
  • Weather resistant
  • Maintenance free
APPLICATIONS:
  • Expressways
  • Railways
  • Industrial
  • Oil & Gas
  • Manufacturing
