SOUNDBLOX® Acoustic Masonry Wall System

A dual-function sound-absorbing concrete masonry unit, SOUNDBLOX® serves as a “2-in-1” construction system i.e. a party wall with built-in sound absorption, hence eliminating the need for a separate acoustic absorption treatment.

SOUNDBLOX® derives its excellent sound absorption from a unique cavity-slot resonator construction that functions as a Helmholtz Resonator. The absorption profile has been extended further by the use of fibrous fillers and sequential cavities moulded into the masonry blocks. Its ability to withstand high impact and weather abuse renders it an ideal materials for both indoors and outdoor applications.

TECHNICAL INFORMATION:
  • Dimension: 400 mm (L) x 200 mm (H) x 150 mm (T)
  • Weight: ± 14 kg
  • Colour: natural concrete colour (can be painted or color-pigmented)
  • Fire Rating: 2 hours
  • Transmission Loss: STC 42
  • Sound Absorption: NRC 0.7
KEY FEATURES:
  • Excellent sound absorption and transmission loss performance
  • Tough and durable
  • Saves labour, cost and construction time
  • Able to withstand high impact and abuse
  • Washable and maintenance free
APPLICATIONS:

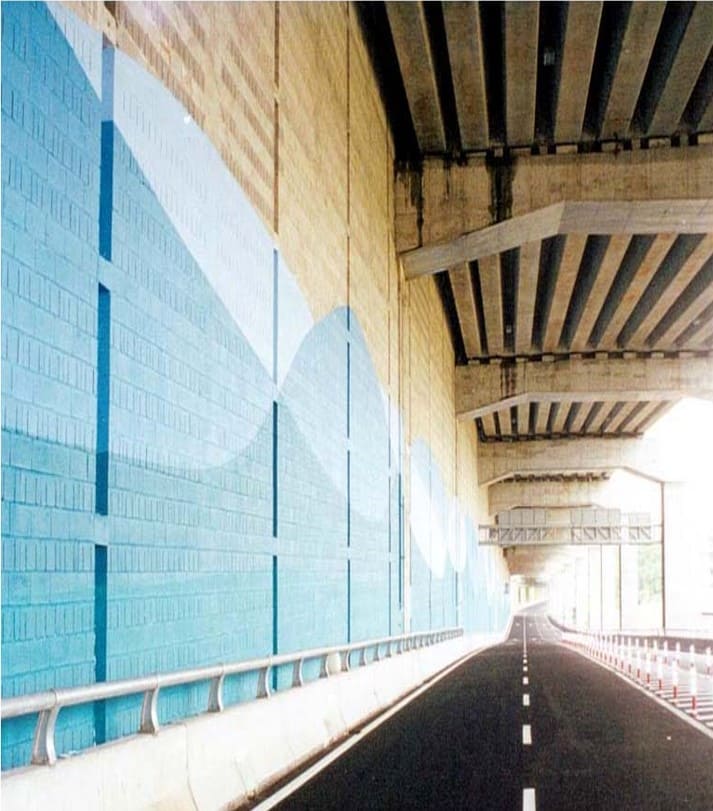

  • Road/Rail Traffic Noise barrier
  • Multpurpose / Sports Hall
  • Lecture Theatre
  • AHU Rooms
  • Genset Rooms
  • Factory Production Areas
  • Aircraft Hangars
  • Tunnels
  • Subway Stations, etc
