Coruline Acoustic Metal Lining System

An appealing metal wall & ceiling lining system, Coruline was conceived as a revival of convenient cladding of yesteryears which appeals to the Architect and ID for the most modern building applications. It can be installed flat, curved, and raking for both indoor and semi-outdoor areas. Its unique corrugated profile and in built secret fixings render superior strength and robustness which makes it highly durable and best used in areas of high wear and tear, such as sports centers, detention centers, lecture halls and multi-purpose halls.

TECHNICAL INFORMATION:
  • Module Width: 160 mm
  • Depth: 7.5 mm
  • Perforation: 3 mm diameter at 7 mm diagonal pattern
  • Material: zincalume®
  • Color: colorbond roofing colors
  • Sound Absorption: NRC 0.90
KEY FEATURES:
  • Fully concealed fixing
  • Available in perforated (acoustic) and unperforated (non-acoustic)
  • Purpose rolled lengths
  • Strong machine curve rolled carriers
  • Curved, flat, and raking ceiling and walls
  • Suspended and direct fixed
  • Decorative finishes
APPLICATIONS:
  • Detention Centres
  • Sports Halls

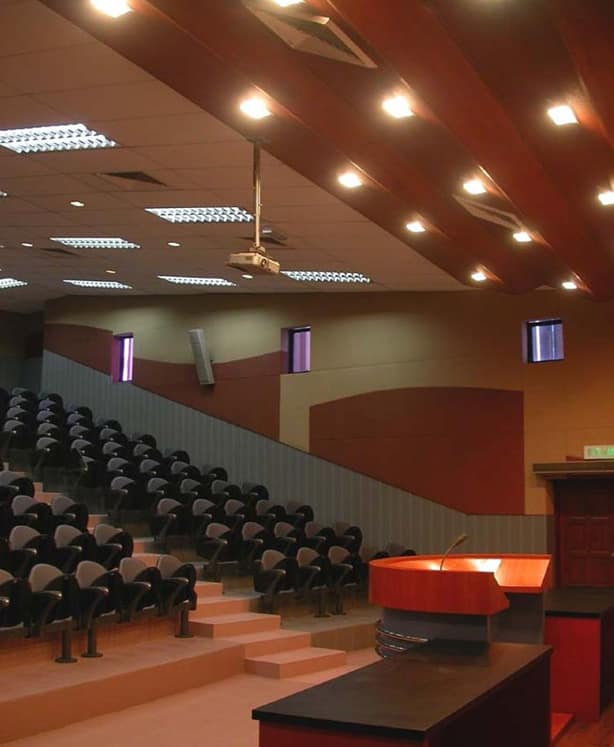

  • Multipurpose Halls
  • Lecture Halls, etc
